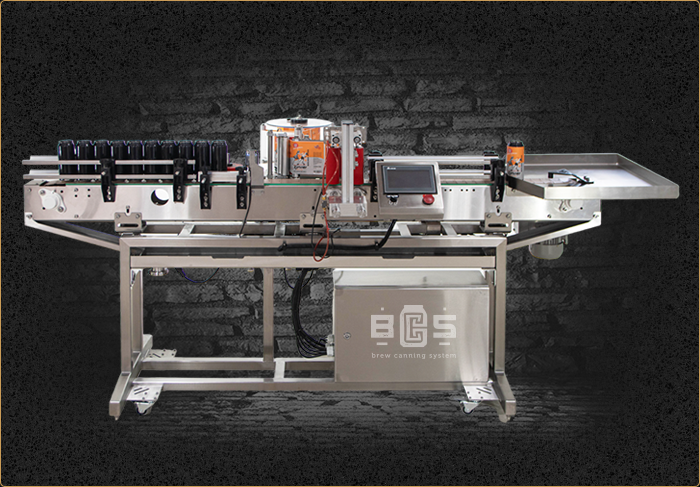

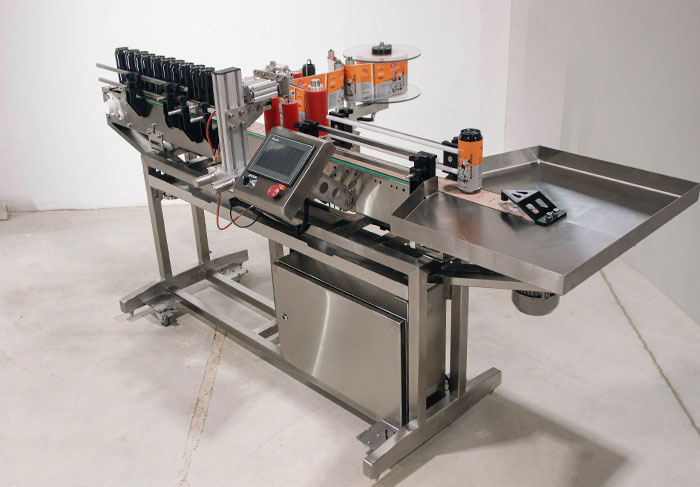

labeling equipment

CHARACTERISTICS AND FEATURES

3 000 labels per hour

Compact size with maximum efficiency.
Weight – 140 kg;
Dimensions (LxWxH) – 2440х1170х1200

Standart
250 ml
8.4 oz

Sleek
330 ml
12 oz

Standart
330 ml
12 oz

Standart
450 ml
14.9 oz

Standart
500 ml
16.9 oz

High precision is our priority and is achieved through special technical solutions.
The machine has a rigid and vibration-resistant design.
Accuracy, simplicity, convenience and speed of adjustment are achieved by means of flywheels.

We use only high-quality components in the manufacture of the machine.
BCS LABEL has automatic synchronization of the speed of all equipment with the speed of the conveyor and the ability to smoothly adjust the speed of the line.
Reliably fixed in the selected position.

High productivity and long service life are achieved through modern technical solutions.
Speed (in m/min) and acceleration are adjusted via the touch screen of the controller with high precision.

We are the developer and manufacturer of the labeling machine, so we always have components and spare parts in stock.

Positions the label dispenser. Five degrees of mobility allow you to set the applicator in any desired position. Accuracy, simplicity, convenience and speed of adjustment using rotary handles. Reliable fixation in the selected position. High rigidity and vibration resistance of the structure

Provides the necessary gap between containers.
Stepper drive.
All necessary adjustments.
Synchronization with line speed.
Touch screen control.

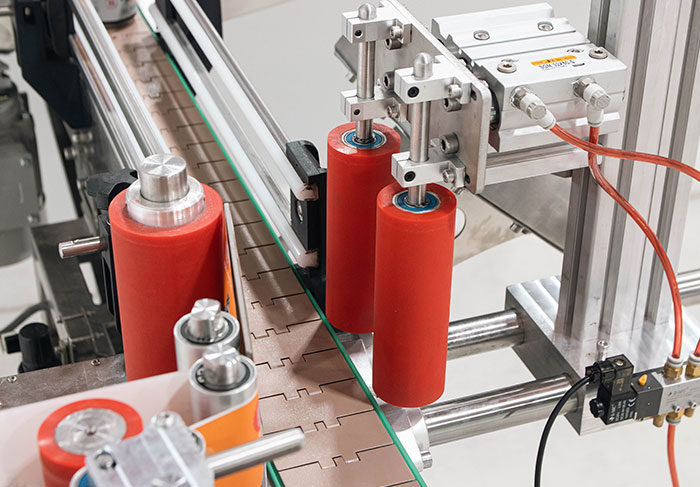

Stepper drive ensures container rotation.
All necessary adjustments: roller width, pressing force, pressing speed, adjustment to container diameter.
Quick replacement of rollers when switching to another container.
Ability to work with conical containers.
Low air consumption.
Synchronization with line speed.
Control from touch screen.

Moves containers to the labeler.

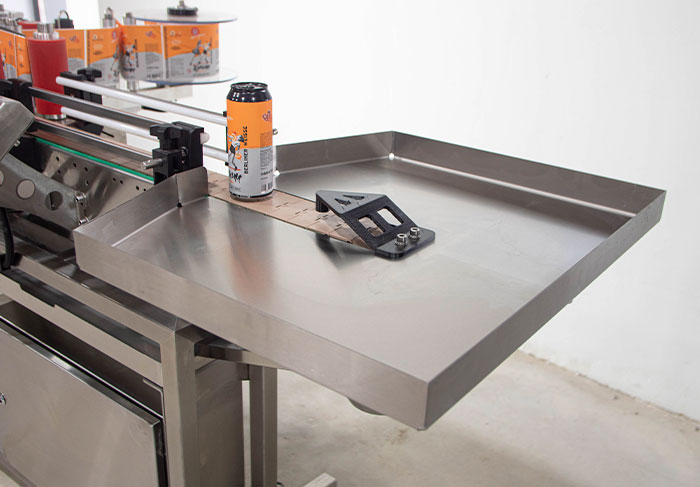

After the label is applied, the container continues its movement to the receiving accumulator table.
Dimensions: chain width - 82 mm, belt height from the floor - 50 mm,
conveyor length - 1650 mm.
Convenient side width adjustment.
High-quality fittings.
Precise speed stability thanks to a stepper drive with smooth start and deceleration with microprocessor control.
Speed (in m/min) and acceleration adjustment via the touch screen of the controller with high accuracy.
Automatic synchronization of the speeds of all equipment with the conveyor speed, the ability to smoothly adjust the line speed.

Solmark vjet1010 is perfect for applying dates.
Weber X1JET pro is suitable for working with the "Honest Sign" system, and is capable of applying DataMatrix codes to labels.
Quick-drying (1.3 sec) solvent ink.
Ability to print dates, expiration dates, batch numbers, 10 and 20 codes on labels.
Ability to set up automatic date changes, no need to make changes manually.
Print resolution 300 DPI
Support for Russian characters.
LCD display.
Easy setup from the keyboard.
Adjustable mount included.
Print field height 12.7 mm.

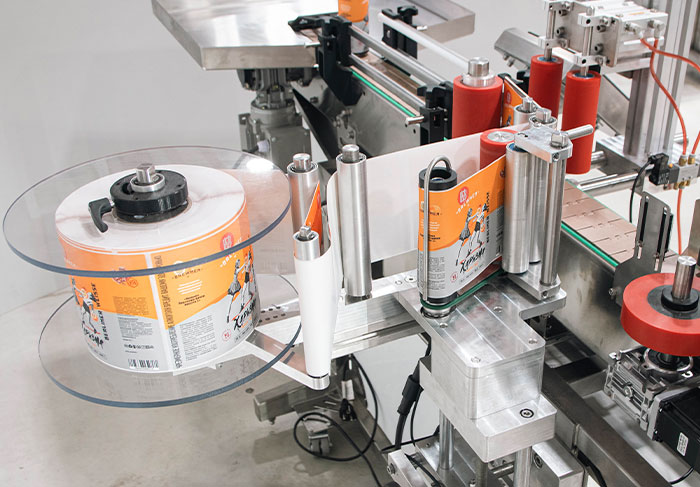

Issues a label.
Precise label positioning and precise speed stability thanks to a stepper motor and microprocessor control.
A brake mechanism with a permanently spring-loaded roller ensures the same tape tension regardless of the reel filling.
Friction transmission on the winding unit for winding the tape without breaks and sagging.
Rotary peeler (knife) for easy adjustment.
Label height up to 150 mm, speed up to 35 m/min
