Aluminum Can Filling Lines at Manufacturer’s Price – Turnkey Solutions. Beer Filling and Seaming Equipment for Beer Cans. 1-Year Warranty. Commissioning & Maintenance Included.
in aluminum and PET can
back

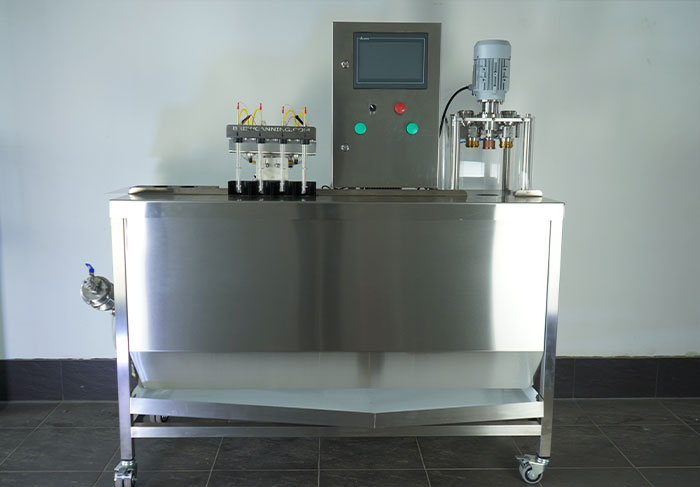

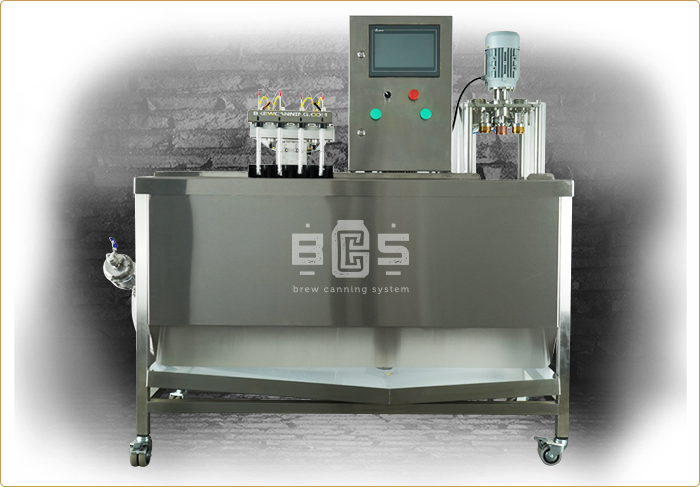

Semi-automatic filling machine with the ability to simultaneously fill 4 cans

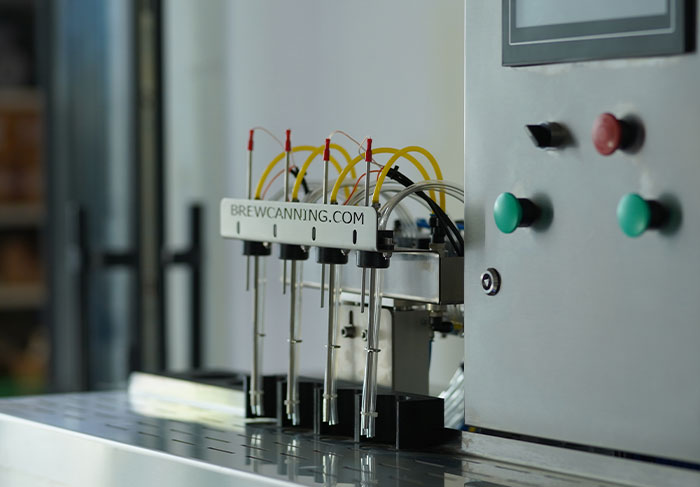

A unique patented pouring method allows pouring drinks of high and low carbonation and density with ease and minimal losses. Four special pouring algorithms allow achieving almost complete absence of oxygen. At the same time, the adjustment is carried out in an extremely simple way.

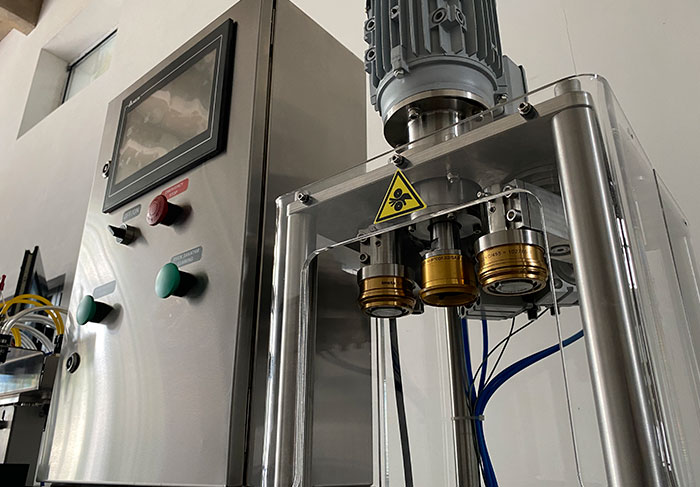

Industrial rollers are used to achieve consistent seaming quality.

capacity
500 cans per hour

filling heads
4

type of filling
atmospheric
download presentation
CHARACTERISTICS AND FEATURES
2 filling heads:
Can 0,3 L. - 500 cans per hour;
Can 0,5 L. - 300 cans per hour.

4 filling heads:
Can 0,3 L. - 700 cans per hour;
Can 0,5 L. - 500 бcans per hour
Compact size with maximum efficiency.
Weight – 150 kg;
Dimensions (LxWxH) – 1650х650х1600
The standard package includes a seaming chuck for the 202 CDL lid type. If necessary, the package can be changed to 200 CDL.
Standart
250 ml
8.4 oz
Sleek
330 ml
12 oz
Standart
330 ml
12 oz
Standart
450 ml
14.9 oz
Standart
500 ml
16.9 oz
Unique patented pouring method.

Several years of experience working at our own brewery and with many of our clients have allowed us to develop an ideal system for filling carbonated products with the correct distribution of carbon dioxide, detailed control of the amount of foam while observing the conditions, due to this, minimal oxygen pickup, as well as convenience and high quality of bacteria removal when flushing the system.

Pneumatics, electronics and other components from leading manufacturers, as well as intuitive software developed by us. Reliable can sealing unit. Cartridges and rollers are manufactured on professional equipment with hardening and have an average life cycle of more than 10 million operations.
