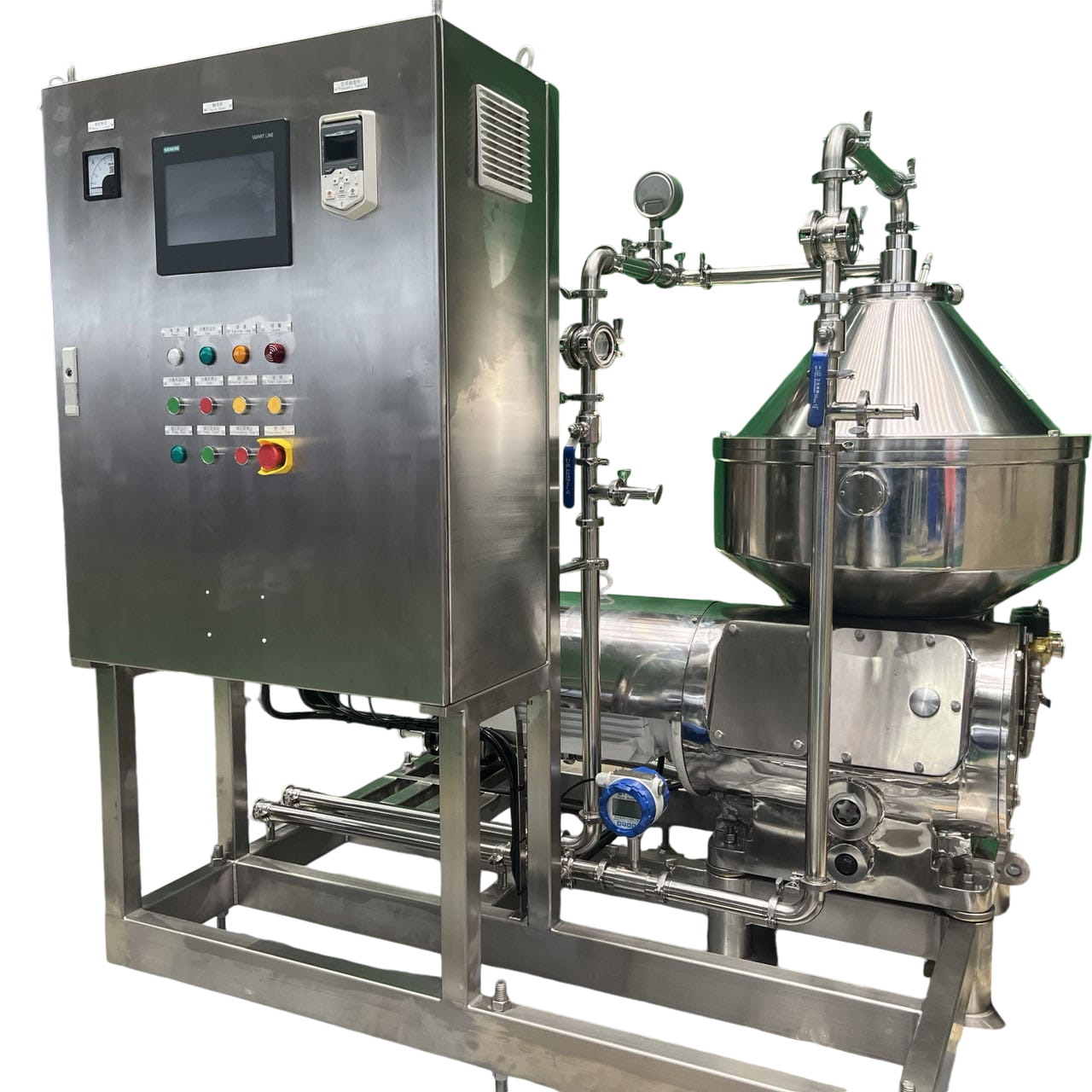

BCS Separator 10-14
The separator is equipped with a self-discharging drum, which allows the separation process to be carried out continuously.

The solids separated by the set of discs slide into the sediment collection space, from where they are periodically removed at full drum speed. This is ensured by a piston on the periphery of the double conical sediment collection space with hydraulic opening to remove solids in a fraction of a second.

From the self-discharging separator, the clarified liquid is discharged foam-free under pressure by a centrifugal pump.

In order to prevent contact between the product in the separator and the outside air, the machine is equipped with a pressure maintenance system.

capacity
10-14 tons per hour

Separation coefficient
10800

Electric motor
30kW/50Hz/380V
CHARACTERISTICS AND FEATURES
Capacity 10-14 tons per hour
Affordable price for small productions
The machine is designed as a monolith
Long service life
Minimum production area
Vibration intensity:
‹ 1.5 мм/с
Support bearings of the transmission design:
SKF bearing
Noise:
‹ 85dB(A)
Slag discharge method:
A small slag outlet with a valve allows variable slag discharge
Material of parts:
contacting with the product, disk, housing, auxiliary pump - stainless food steel
Electrical components:
Main components of the Schneider brand
Compact size with maximum efficiency.
Weight – 1800 kg;
Dimensions (LxWxH) – 1290x1170x1420
