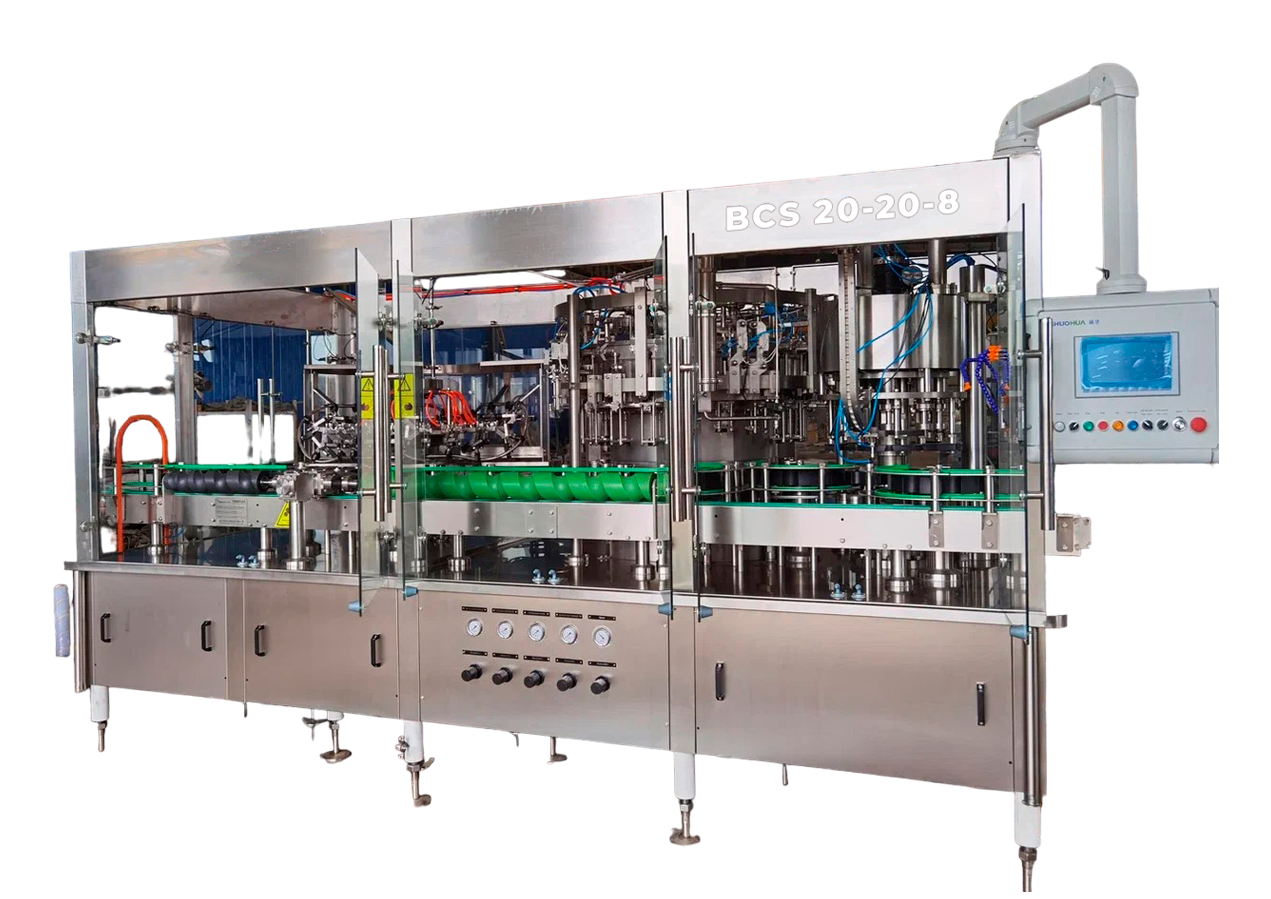

Automatic line with 20 filling heads for all bottle sizes
The filling heads are equipped with a high-precision, built-in mechanical liquid filling valve.
The filling line is equipped with a foaming device.
Due to the efficient operation of electronics, all processes occur without changing the indicators and do not require additional adjustment.
The filling algorithms allow for the almost complete absence of oxygen in the product.
Bottle 0,3 L. - 6 000 bottles per hour;
Bottle 0,5 L. - 4 000 bottles per hour
Compact size with maximum efficiency.
Weight – 2800 kg;
Dimensions (LxWxH) – 2500х2100х3400
Bottle diameter 65-80.5mm
Height of the bottle 210-295mm
The cap feeder uses a stainless steel magnetic hopper. The preparation and feeding of caps are all done by magnetic transmission.
During operation, the hopper lining is difficult to damage;
The hopper has a large area and is easily accessible;
The capping is reliable and has an automatic unloading function;
Reduces the number of broken bottles;
The capping head has an open architecture;
Uses oil-free lubrication
Easy to install and remove
Stainless steel supporting frame
Automatic drum level control system for cans
auxiliary
