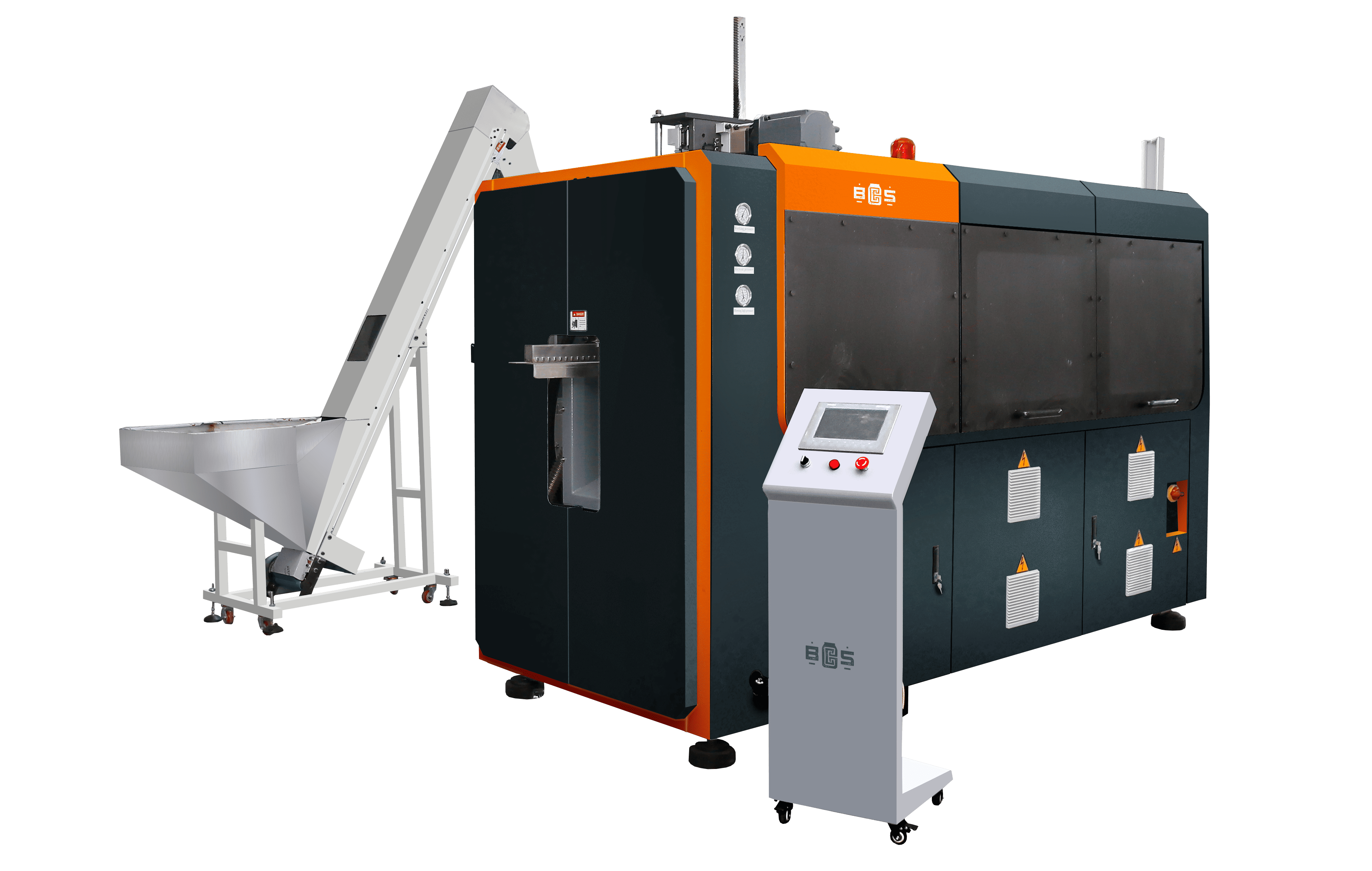

BCS FORM 6 is a versatile solution for high-speed PET bottle production. Touch control, energy-efficient heating system and modular design make this model ideal for companies with different production volumes.
Capacity 9 000 bottles per hour
No of mould cavity 5-6
Power 58 KW
Bottle volume 0.2–1.5 L
CHARACTERISTICS AND FEATURES
Capacity: 9 000 bottles per hour
No of mould cavity: 5-6
Power: 58 KW
Bottle volume: 0.2–1.5 L
Maximum Bottle diameter: 100 mm
Maximum container height: 340 mm
Compact size with maximum efficiency.
Dimensions – 3500 х 1500 х 2300 mm (Weight – 4300 kg)
Preform feed dimensions – 2700 х 1300 х 2800 мм (Weight – 200 kg)
