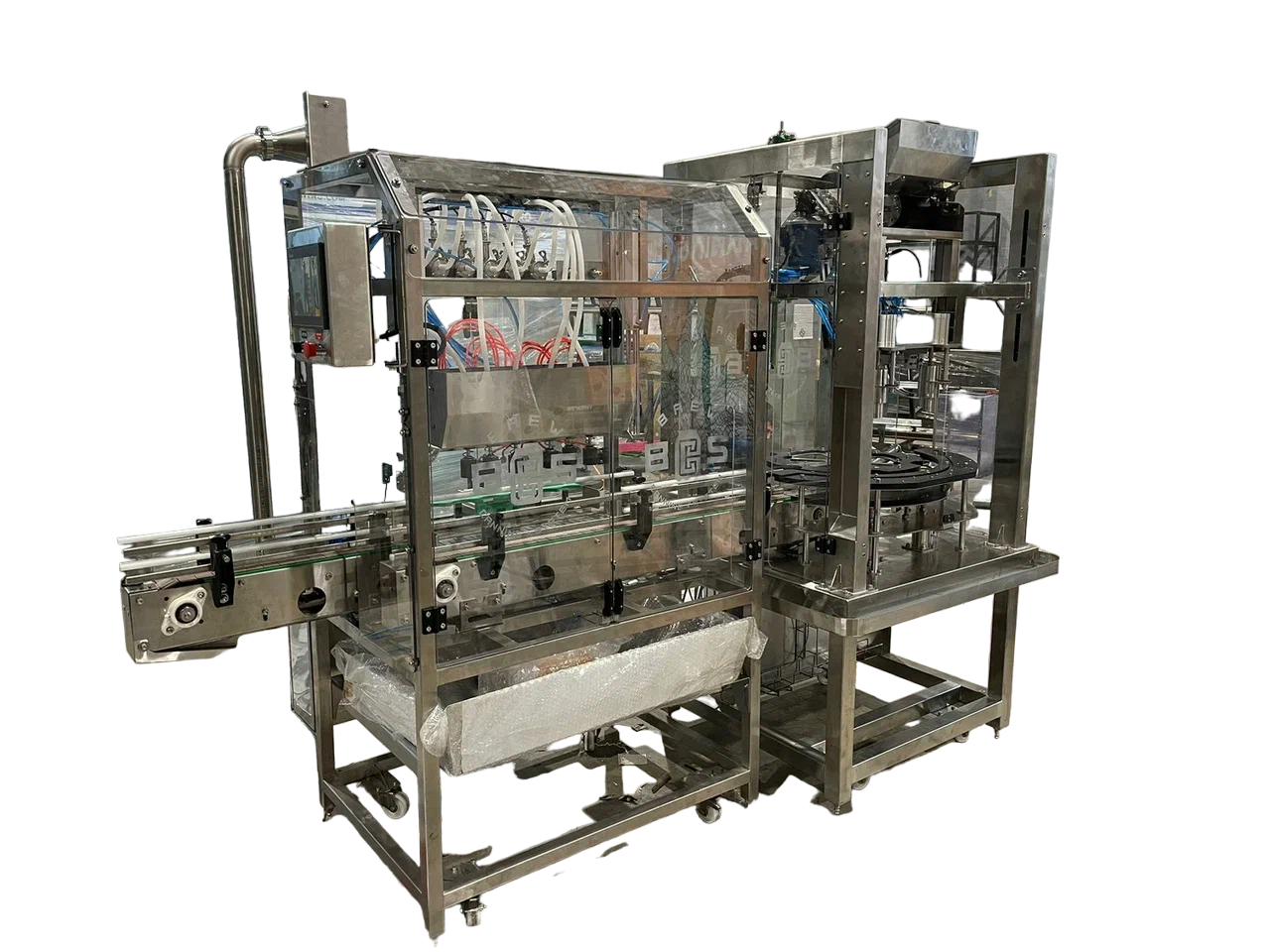

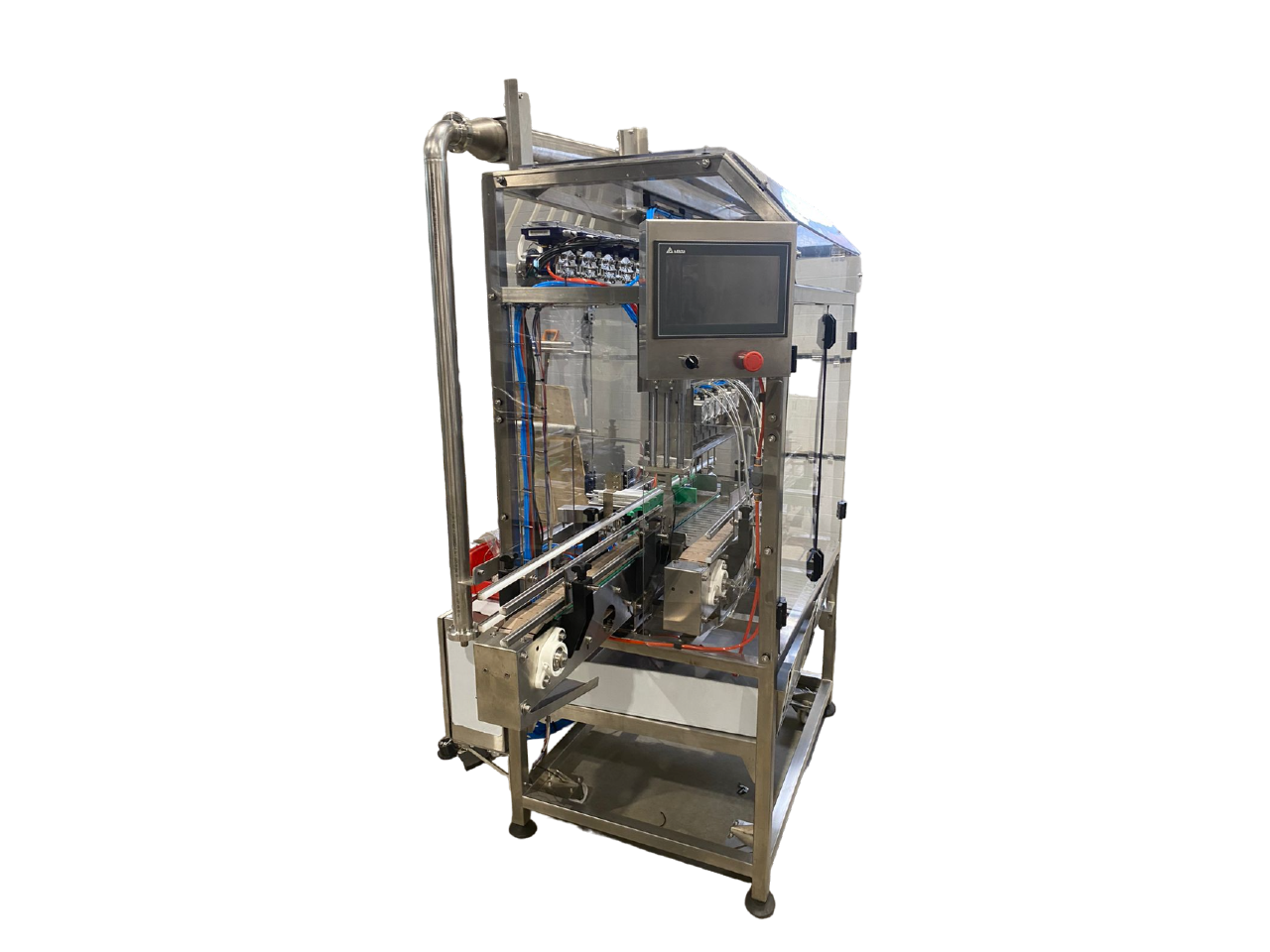

Glass bottling lines BCS Crystal 6 is a modern, linear system for filling and capping bottles, developed on the basis of proven European technology.
Due to the efficient operation of electronics, all processes occur without changing the indicators and do not require additional adjustment.
The filling algorithms allow achieving almost complete absence of oxygen in the product.
The filling and capping unit can be used separately from each other.
type of filling isobaric
capacity 800 bottles per hour
filling heads 6
capping heads 1
CHARACTERISTICS AND FEATURES
bottle (0,33L – 0,7L) - 800 bottles per hour
Compact size with maximum efficiency.
Weight – 1200 kg;
Dimensions (LxWxH) – 2800х1000х2800
Bottle diameter 63~93 mm
Height of the bottle 200~400 mm
1. Filling block: Equipped with a pneumatic product filling valve Two-stage CO2 purge function Control of filling level by meters Raise and lower according to the height of the bottle. Adjustment of the filling level of each head
2. Capping block: Stopper options: Crown, cork, T-shaped, screw Modular design Does not require lubrication Quick change for different types of bottles Automatic operation of the lid feeding system
3. Back pressure: The machine works automatically
Setting and displaying operating conditions and parameters on the operator panel
4. Control: The machine works automatically Coordinated blocking of all machine operations Industrial PLC Control
