Aluminum Can Filling Lines at Manufacturer’s Price – Turnkey Solutions. Beer Filling and Seaming Equipment for Beer Cans. 1-Year Warranty. Commissioning & Maintenance Included.
in aluminum and PET can

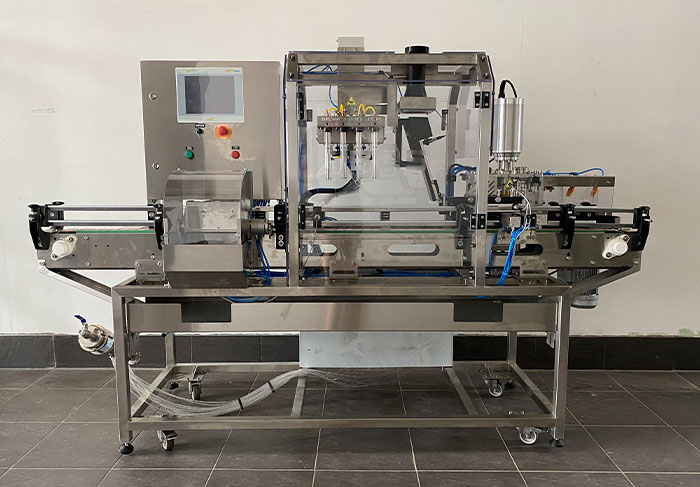

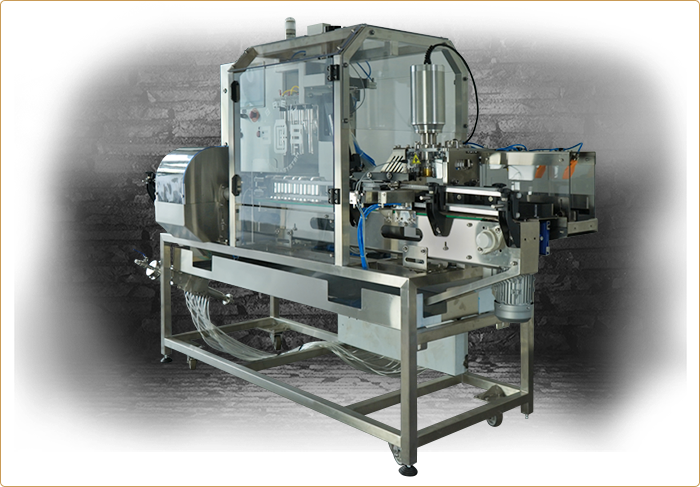

Automatic line with 4 filling heads for filling all volumes of cans 200-202 CDL

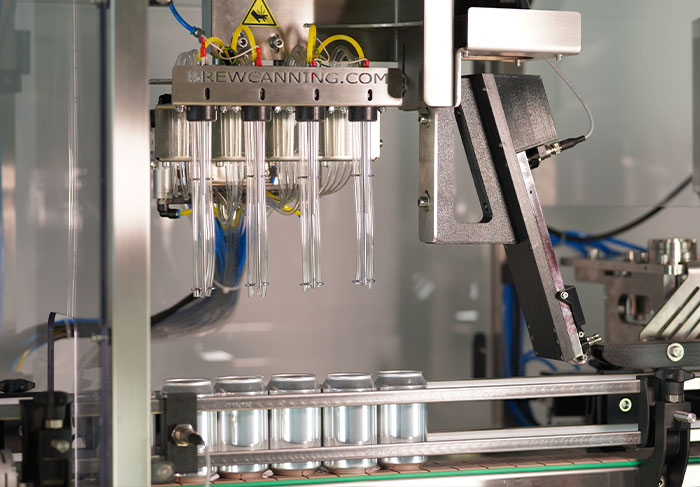

The unique patented pouring method allows pouring drinks with high and low carbonation levels and density with ease and minimal losses.

Four special pouring algorithms allow achieving virtually no oxygen. At the same time, the adjustment is made in an extremely simple way

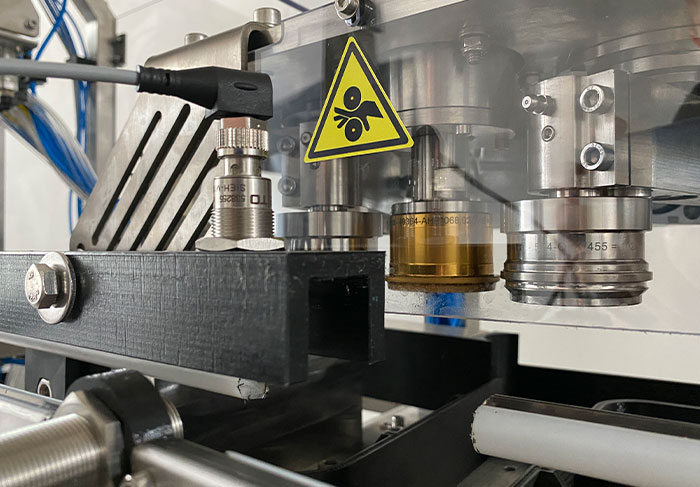

Industrial rollers are used to achieve constant quality indicators of seaming.

capacity
1000 cans per hour

filling heads
4

can
rejection system

can washing system
semi-automatic
CHARACTERISTICS AND FEATURES
4 filling heads:
Can 0,3 L. - 1000 cans per hour;
Can 0,5 L. - 800 cans per hour;

6 filling heads:
Can 0,3 L. - 1400 cans per hour;
Can 0,5 L. - 1200 cans per hour;
Compact size with maximum efficiency.
Weight – 250 kg;
Dimensions (LxWxH) – 2500х750х1700
The standard package includes a seaming chuck for the 202 CDL lid type. If necessary, the package can be changed to 200 CDL.


Standart
250 ml
8.4 oz
Sleek
330 ml
12 oz
Standart
330 ml
12 oz
Standart
450 ml
14.9 oz
Standart
500 ml
16.9 oz
Unique patented pouring method.

Several years of experience working at our own brewery and with many of our clients have allowed us to develop an ideal system for filling carbonated products with the correct distribution of carbon dioxide, detailed control of the amount of foam while observing the conditions, due to this, minimal oxygen pickup, as well as convenience and high quality of bacteria removal when flushing the system.

Pneumatics, electronics and other components from leading manufacturers, as well as intuitive software developed by us. Reliable can sealing unit. Cartridges and rollers are manufactured on professional equipment with hardening and have an average life cycle of more than 10 million operations.

Automatic 4-can wash
Conversion kit for working with Sleek can
Conversion kit for 250 ml Sleek can with 200 CDL lid format
